Build & Deploy Series | Part-3 | Build and Deploy of React Application in Kubernetes(microk8s) hosted on AWS EC2

Highly Recommend using repo here -Day3 to practise this project instead of code snippets, In case of confusion, Please do watch video that is explained in English, the code here in the blog is not changed to keep screenshots intact

Also please do note that English video also consists of another session clubbed that is kubernetes imperative commands

Kubernetes Imperative Commands Blog - Blog

Configuration to be used for this project:

Image: Ubuntu Server 24.04

Type: t3.medium

cost charges may occur on t3.medium, make sure to turn off the instance

#Note: AWS Free Tier is only for 750 Hours per year, so make sure you stop instance once you are done with the project

Now let us Dockerize our React application,We will install docker on our AWS EC2

Now before we start ,we recommend you to watch Part-2 as Docker images plays a major part in this project

As we have already created docker image in Part-2 Project, we will use the same docker image here

We will make an account in Dockerhub first. and then we will push our image to dockerhub.

By default we get one public repositories free from Dockerhub,we will make use of it.

once you created, click on create repository inside docker hub

you will be able to find two commands at right corner of the screen

docker tag local-image:tagname new-repo:tagname
docker push new-repo:tagname

Now let us sign into AWS EC2,at which we created docker image as part of our last project

sudo docker login

once logged in, now let us use the commands that we have used copied from docker hub

and change commands according to our need

check the docker images to make sure

sudo docker images

Now let us make changes for docker hub commands we copied accordingly

our local-image name is react-docker and tagname can be latest,our new repo name will be username/repo-name, our username is testdemo880 for docker hub and repo-name can be react-docker-hub. you can give it any name. dockerhub creates repo if repo does not exist

so our command modifies as follows

sudo docker tag react-docker:latest testdemo880/react-docker-hub:latest
sudo docker push testdemo880/react-docker-hub:latest

Once docker image is pushed, you will be able to see our docker image in docker hub

We can now logout of our AWS EC2 server in which we have our docker image

Kubernetes(microk8s)

Now let us launch a new AWS EC2 instance install microk8s on by following instructions from official documentation.

We are proceeding with microk8s for this sample project as kubernetes setup is bit complex

We will use alias command to get the feel just like we work in kubernetes

sudo snap install microk8s --classic

Now lets add ubuntu user to microk8s group

sudo usermod -a -G microk8s ubuntu
mkdir ~/.kube
sudo microk8s kubectl config view --raw > ~/.kube/config

make sure to sign out and sign in from ubuntu user for the next commands to work

sudo su - root
sudo su - ubuntu

let us check microk8s pods by

microk8s kubectl get all --all-namespaces

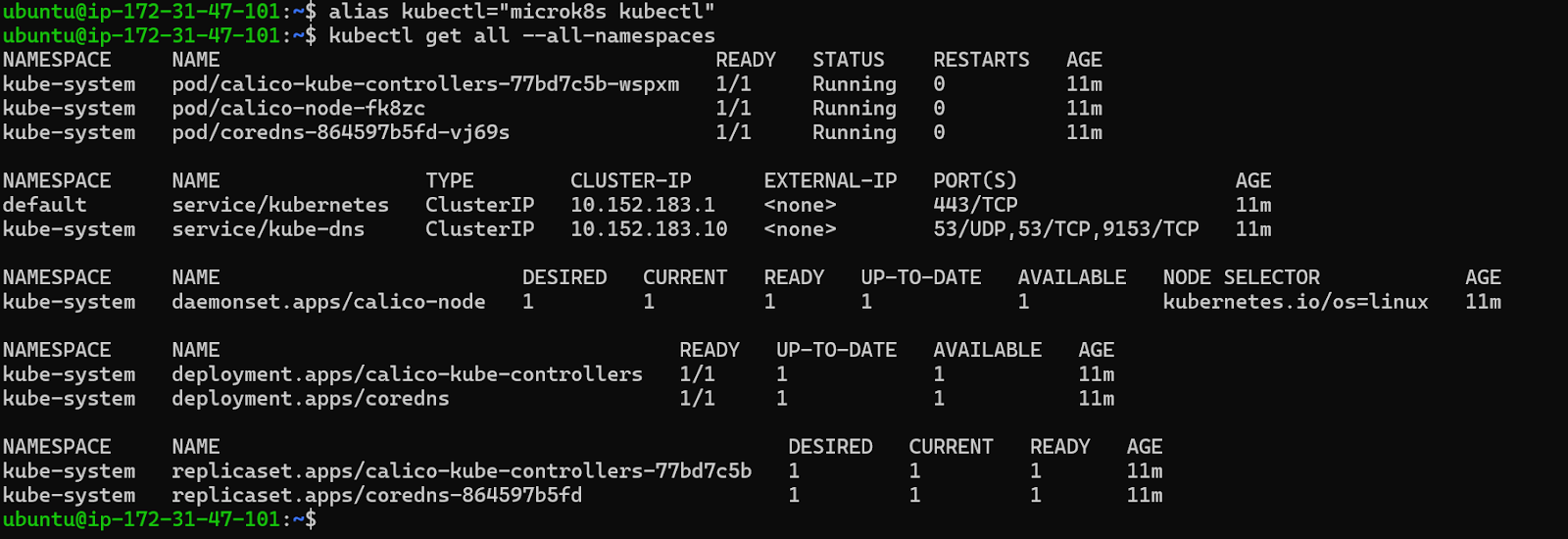

Now let us use alias command to work like kubernetes

alias kubectl="microk8s kubectl"



Deployment of React in Kubernetes

Now to start with Deployment of kubernetes, we need pods to deploy our application,service to access our application, And Ingress to access our application through ingress.

Now to start with Deployment of kubernetes, we need pods to deploy our application,service to access our application, And Ingress to access our application through ingress,so we will create three manifest files, react-deployment.yaml, react-service.yaml and react-ingress.yaml

let us create one by one

Before that , let us create a namespace

kubectl create ns react-microk8s

you can give any name for namespace of your choice, i have given name as react-microk8s

Now lets create deployment file

apiVersion: apps/v1
kind: Deployment
metadata:
  name: react-deployment
  namespace: react-microk8s
  labels:
    app: react-demo
spec:
  replicas: 2
  selector:
    matchLabels:
      app: react-demo
  template:
    metadata:
      labels:
        app: react-demo
    spec:
      containers:
      - name: react-demo
        image: testdemo880/react-docker-hub
        ports:
        - containerPort: 80

As you could see in image, i have used our dockerhub repo name

by default it takes latest tag, if you have specified any other tag apart from latest then update image name to be testdemo880/react-docker-hub:1.2 , here 1.2 can be referred as tagname

let us create deployment by command and also i have exposed our pod at port 80

kubectl apply -f deployment.yaml

Now check pods created by deployment with command

kubectl get pods -n react-microk8s

Now overview of our setup looks like this

Now let us create a service,Service and deployment must be in the same namespace

Service and deployment connects together through labels

apiVersion: v1
kind: Service
metadata:
  name: react-service
  namespace: react-microk8s
spec:
  selector:
    app: react-demo
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80

TargetPort must be the Port number that you opened on our pod, in our case it is 80,We matched our deployment and service using labels as you can see in see in selector,labels,specified are same as that mentioned in deployment

lets start our service by command

kubectl apply -f react-service.yaml

Now check the service by command

kubectl get svc -n react-microk8s

By default service creates ClusterIp, there are different services like NodePort and Loadbalancer,each service having its own significance,since service is up,we will be able to access our website internally,you can use curl http://{CLUSTER-IP}:{SERVICE-PORT}

the above screenshot shows our website is accessible,Now our setup looks like this

Now since clusterip can only be accessed internally, let us go to create ingress to access by our domain. Ingress must be in the same namespace where service and deployment are available,but before creating ingress, we need ingress controller pod to be created.

since kubernetes has its own nginx controller pod, we need to enable it

since we are using microk8s, enable ingress by command

microk8s enable ingress

you can find new ingress-nginx pod

kubectl get all --all-namespaces

Now let us write our ingress file

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: react-ingress
  namespace: react-microk8s
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:
  - host: hari-dev.shop
    http:
      paths:
      - pathType: Prefix
        path: /
        backend:
          service:
            name: react-service
            port:
              number: 80

here hari-dev.shop is our domain name and react-service is the name of service we created and port number 80 is the service port

lets create ingress by the command

kubectl apply -f react-ingress.yaml

Verify ingress by the command

kubectl get ingress -n react-microk8s

Now we give curl http://hari-dev.shop from inside our server, we will be able to access our website

Deployment is successful

Now our setup looks like this

Domain visibility

Go for AWS EC2, security groups and In inbound rules allow port 80,as our nginx listens on port 80



post that copy AWS EC2 public IP,

Log into your GoDaddy Console and My Products >Domain > DNS.In A records, paste the AWS EC2 public IP

Now we will be able to access our domain in which we can see our React application that we have built and deployed

AWS public IP changes once the system is stopped and started back. to avoid this, we can use AWS Elastic IP with some cost charges

For Build and Deploy Complete Series - Click here

##I Post most of my content in Telugu related to contrafactums(changing lyrics to original songs),fun vlogs, Travel stories and much more to explore, You can subscribe here at sagar kakkala's world Youtube,You can also follow me on other sites Sagar Kakkala LinkedIn, Sagar Kakkalas world Instagram (page under construction), Entertainment meme Page ##

🖊feedback,queries and suggestions about blog are welcome in the comments.
